ISBA-5220A Battery Analyzer

The key features:

  Test a variety of battery and conductor resistance, including dry battery, Li-ion battery and special battery
  Various types of battery testing, including 2V, 4V, 6V, 8V, 12V, 24V, 48V, voltage testing range 0-60V
  Various test modes, single testing and auto real-time testing
  Keyboard operation, 3.5" TFT LCD color with backlight, and support multilingual display
  Built-in chargeable Li-ion battery, more than 5 hours operation time
  Large data storage capacity, more than 100,000 records

Product overview

ISBA-5220A is a battery resistance analyzer with multiple functions. It supports domestic and international standards and tests various battery type such as 2V, 4V, 6V, 8V, 12V, 24V and 48V. The analyzer contain test resistance of conductor and metal connector, and resistance measurement resolution reaches 1μΩ. ISBA-5220A adapts VLSI and powerful microprocessor, and can exchange data with RS232 and TCP/IP Ethernet port. Meanwhile, it adapts with large screen colorful LCD, and provides powerful background data management software to analysis, display and report test data. It’s an indispensable tool for network operators, power department,operations etc.

Typical applications

 Storage batteries use of environmental conditions

  Purpose for using the Storage battery test

Functional specifications

 Storage battery resistance testing: automatically switch within the test range 1μΩ--400Ω, and
resistance measurement resolution reaches 1μΩ
 The analyzer able to test resistance of conductor and any metal connector of battery, resolution reaches 1μΩ
 Battery voltage testing can test all kind battery voltage under 48V, battery voltage can be tested automatically during resistance measurement.
 Positive and negative terminals temperature testing and it can be tested automatically during resistance measurement.
 Battery conductive testing, multiple model resistance/ conductance test to meet different user’s demands.
 Permanent storage of 250 groups battery parameters, and each string includes 480 batteries at most
 Test result can be compared with the comparator data directly, and it supports permanently 300
types of battery comparator data
 Data backstage management provides RS232 and TCP/ IP port, testing date can be uploaded to the computer to analysis or store.
 Powerful function on data analysis and management, directly generate and display the battery string test report and distribution curve graph

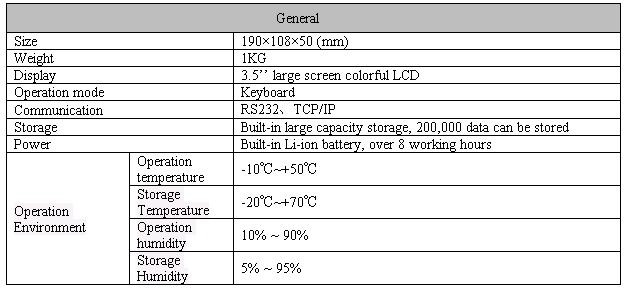

Main indicators
