MST-3530G Multi-service Access Network Tester

The key features:

 Integrate access network multiple services like xDSL, GPON, WLAN and Ethernet into one box,
technician can solve all problems with one tester
 Large screen true color display, touch screen operation
 Windows CE operation system, graphic interface,easy to operate
 Web browsing: built-in IE explorer, browse any web page freely

Product overview

MST-3530G multi-service access network tester is a handheld and integrated tester which supports xDSL, GPON, WLAN and Ethernet. It can make an accurate and quick testing for xDSL, GPON, WLAN and Ethernet.
This product is an ideal tool for installation, deployment and maintenance of xDSL, GPON, WLAN and
Ethernet, which applies to network operator services, including DSL copper, FTTX optical fiber, wireless and broadband services.

Typical applications
 ATUR+PC emulation
    ATUR+PC emulation for xDSL physical layer test, network layer test and application layer test
 xDSL modem replacement
 Cable testing
 Tone generation
 Wiremap testing
 Ethernet testing
 ONU+PC emulation
    ONU+PC emulation for GPON optical power test, registration, network layer and application layer test
 ONU replacement

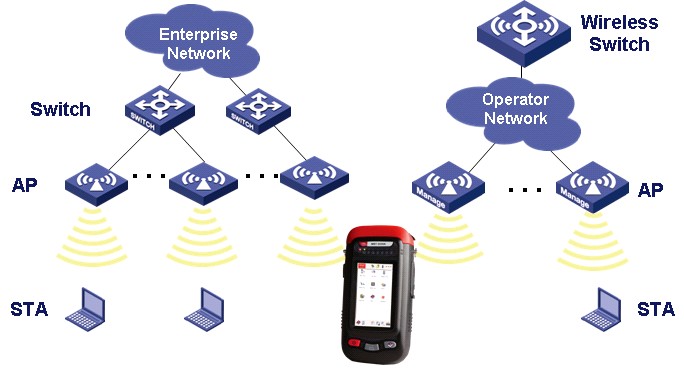

 WLAN STA emulation

Functional specifications

 xDSL physical layer testing
- Full support all ADSL standards, including ANSI T1.413 Issue 2, ITU-T G.992.1 G.dmt, G.992.2 G.lite, G.992.3 ADSL2, RE-ADSL2 and G.992.5 ADSL2+
- Test upstream, downstream, maximum speed and channel utilization
- Test upstream and downstream noise margin, and output power and power attenuation
- Error statistics of near end and far end FEC, CRC, HEC, NCD, and OCD
- Automatically detect and display LOS, LOF, LOC and LOM with the comparison between history and present data
- Error seconds statistics
- Display every sub-channel of Bits per Tone by the mean of graphic and number
- Display every sub-channel of SNR per Tone by the mean of graphic and number

 xDSL network layer testing
- Support various upper layer protocols, including RFC2684, RFC1483, RFC2516 PPPoE, RFC2364 PPPoA
- PPPoE/PPPoA dial-up obtain IP address and Ping testing
- Fixed IP Mode Ping testing
- Ping testing that includes Ping loss testing with times and package size, Ping loopback latency testing with MAX, MIN and average
- Traceroute testing
- ADSL2+ modem replacement xDSL application layer testing
- Web browsing
- Web rate testing
- FTP rate testing

 Cable testing
- Digital Multi Meter, DMM is used to test loop resistance, insulation resistance, capacitance, AC/DC voltage and line length estimation
- Tone generation
 GPON testing
Optical power testing
- Test OLT transmit light power
- Adjust threshold conveniently for throughput/ failure analysis
- Provide ten pre-defined adjustable thresholds at most
GPON simulation testing
- Simulate GPON ONU, realize registration and network connection
- Network layer testing: Ping, Ipconfig, Route and traceroute
- Application layer testing: web browsing, web and FTP rate testing
WLAN testing
Signal strength testing
- Display signal strength and SNR by the mean of graphic and number
- Evaluate RF covering area via signal strength testing
Wireless network card simulation testing
- Simulate wireless network card for network connection, support 802.11b and 802.11g
- Network layer testing: Ping, Ipconfig, Route and traceroute
- Application layer testing: web browsing, web and ftp rate testing

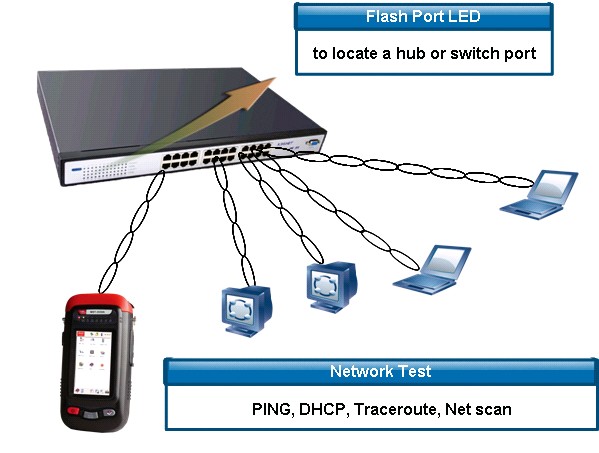

 Ethernet testing
Basic LAN testing
- Search key equipment on network such as router, SQL server, printer, and list IP address
- Capture the host infomation of destination equipment, including host name and MAC address
- Capture system name, system ID, system service, ports numbers, system description, route table and port information of destination IP equipment through SNMP
- PPPoE dial-up and DHCP client testing
- Network layer testing: Ping, Ipconfig, Route and traceroute
- Application layer testing: web browsing, web and ftp rate testing
Cable testing
- Wiremap and cable length testing
- Tone generation
- Auto power-off
- Sound and LED alarm indication
- Data management
- Software online upgrade

Main indicators

General Indicators


200×120×60 (mm)3




480 × 272 TFT true color


Touch screen and keyboard


RJ11Optical interfaceRJ45USBPower port


Rechargeable Li-ion battery

Charging time


Working time



Operation temperature


Storage temperature


Operation humidity

10% ~ 90%

Storage humidity

5% ~ 95%

Data storage

2G(extensible), more than 2000 testing results
